Product BrochureThe Engineering Behind Every Ball Return
A bowling ball return system may look simple from the player's perspective, but reliable ball delivery depends on coordinated mechanical components working together.
From receiving the ball at the lane end to transferring, guiding, accelerating and returning it to the player, every stage affects return speed, noise, reliability and overall bowling experience.

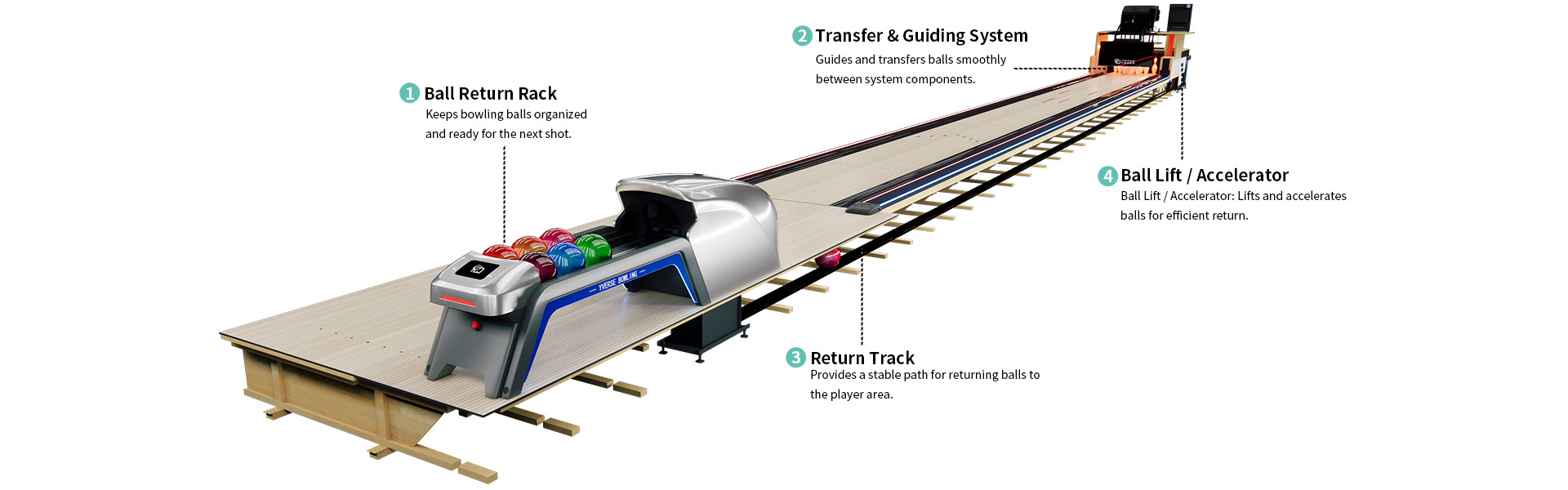

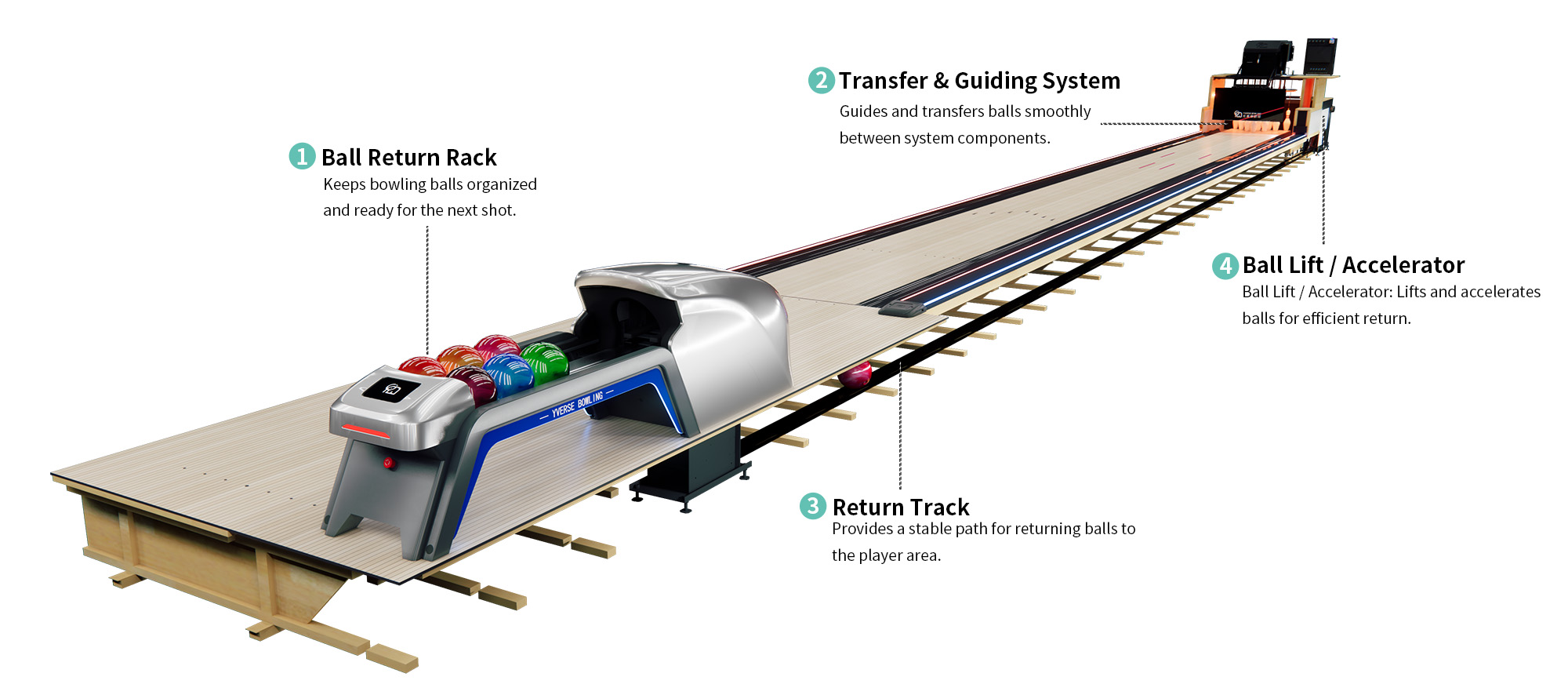

How Does a Bowling Ball Return System Work?
From the pin deck to the player area, every stage is designed for controlled and reliable ball transportation.

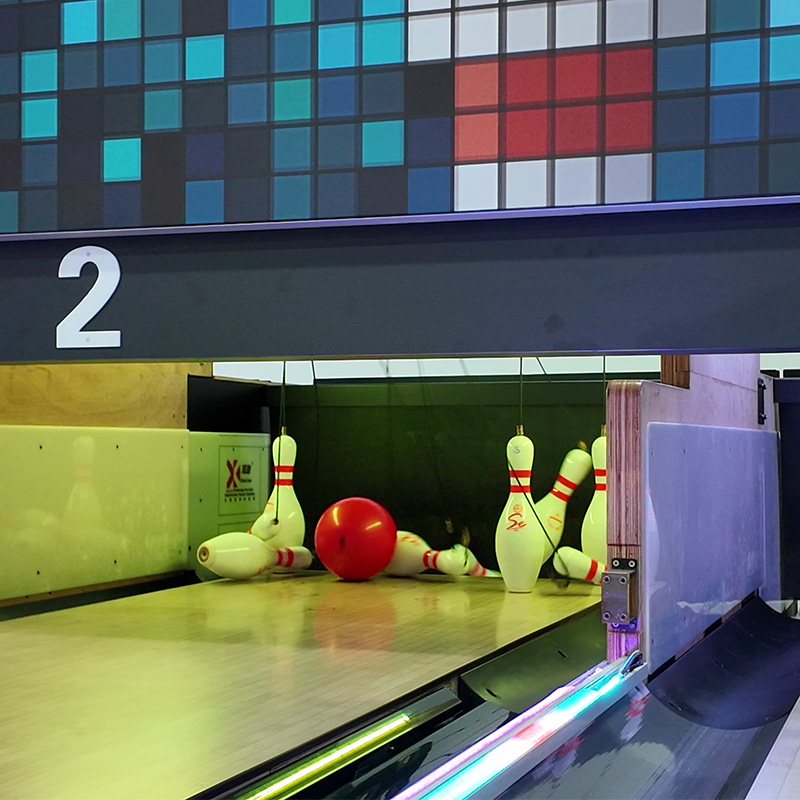

01 Ball Receiving
Receives and guides the ball into the return mechanism.
02 Ball Lift
Transfers the ball from the lower pit area into the return path.
03 Return Track
Provides a controlled route toward the player area.
04 Transfer
Guides balls through the return path in multi-lane systems.

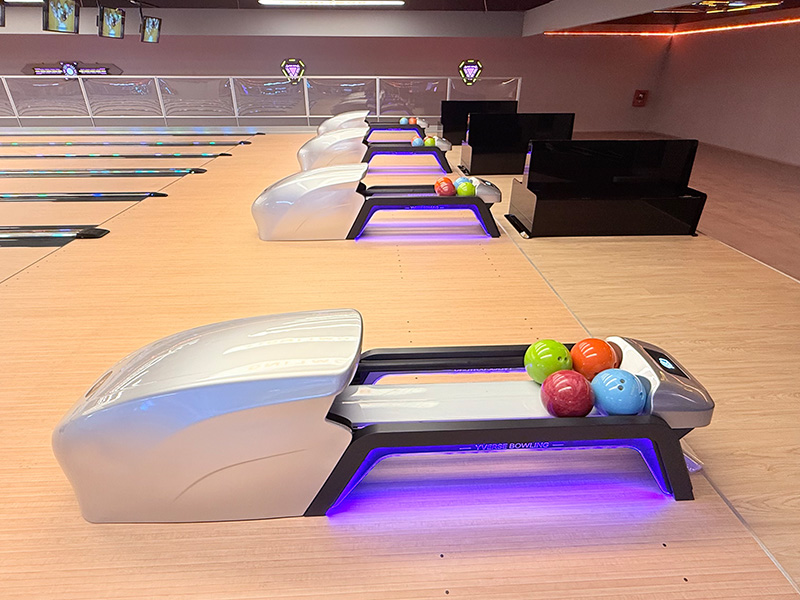

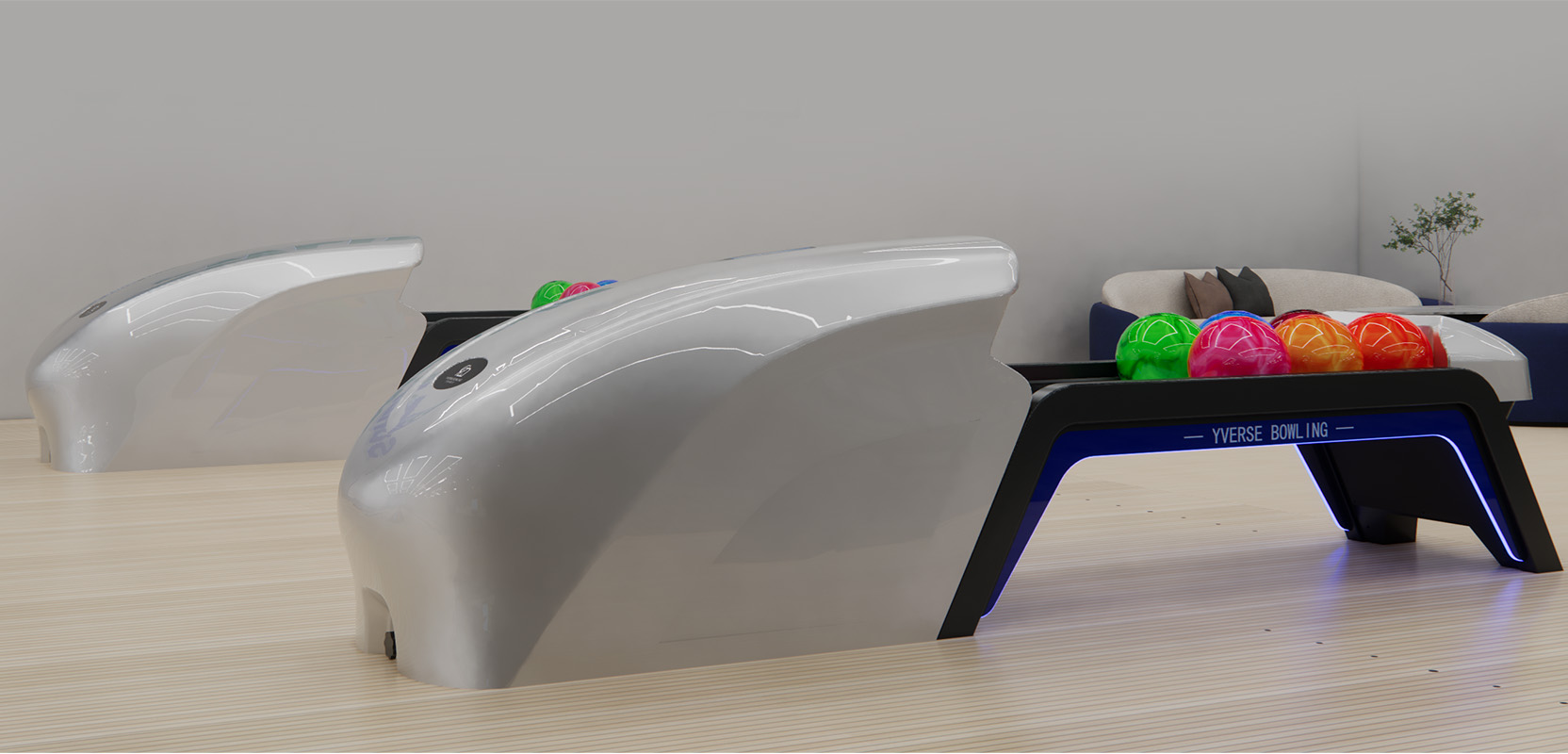

05 Ball Rack
Delivers the ball within easy reach of the player.
Core Components of a Bowling Ball Return System

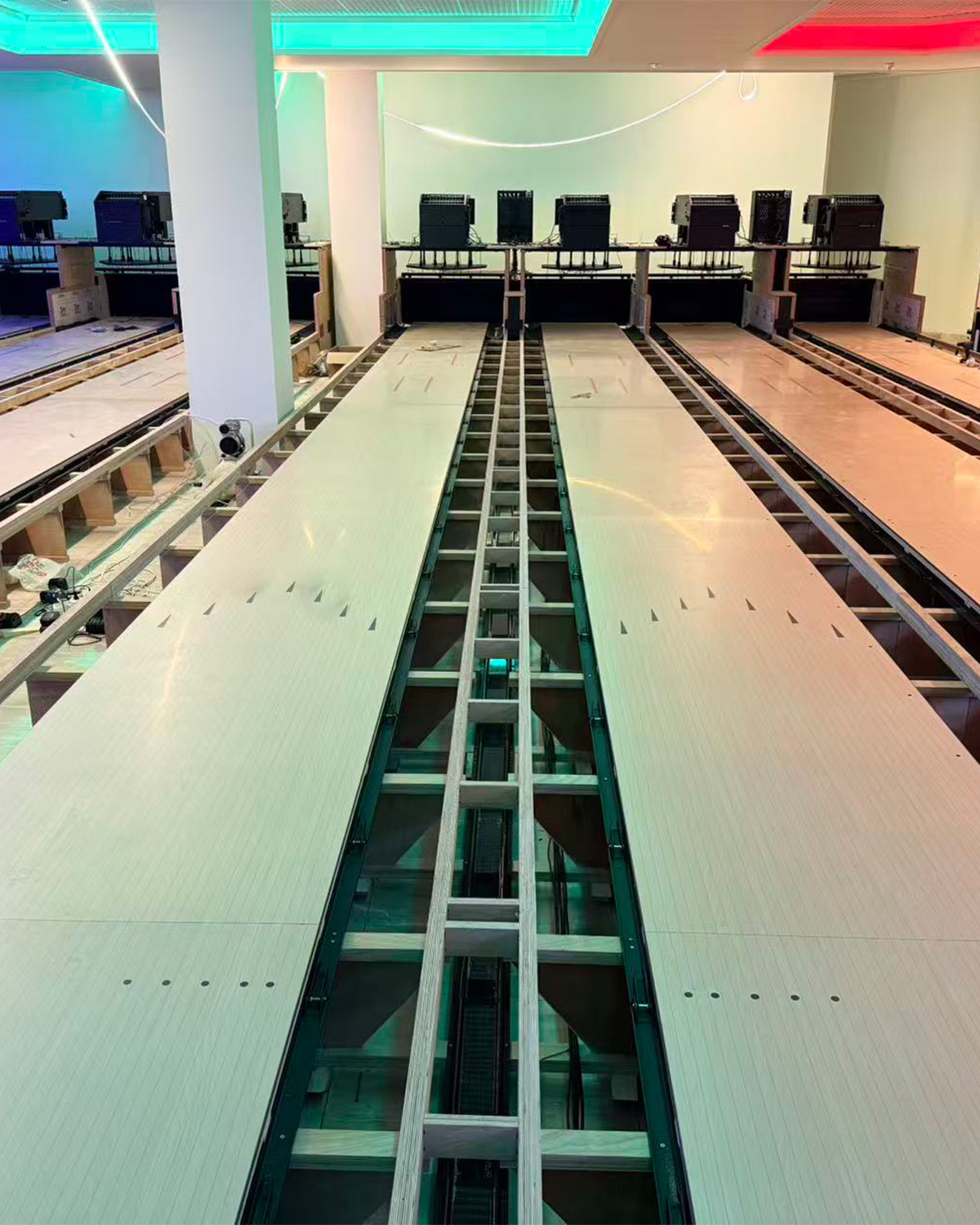

Ball Return Track Technology
The ball return track provides a guided path between the lane-end receiving area and the player-side rack, helping maintain smooth, stable, and consistent ball movement.
Track Alignment
Proper track alignment helps maintain a consistent bowling ball path during the return process.
Ball Guidance
The guided track structure helps control ball movement and reduces unnecessary lateral deviation.
Rolling Stability
Optimized contact surfaces support stable rolling performance throughout the return path.
Noise Control
Controlled ball movement and stable contact help reduce unnecessary vibration and operating noise.

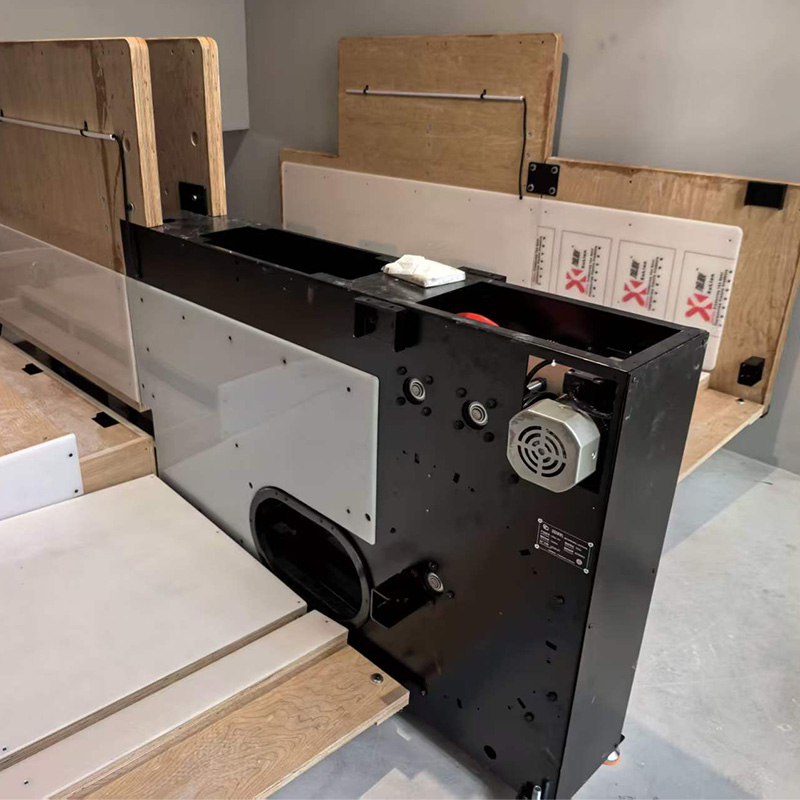

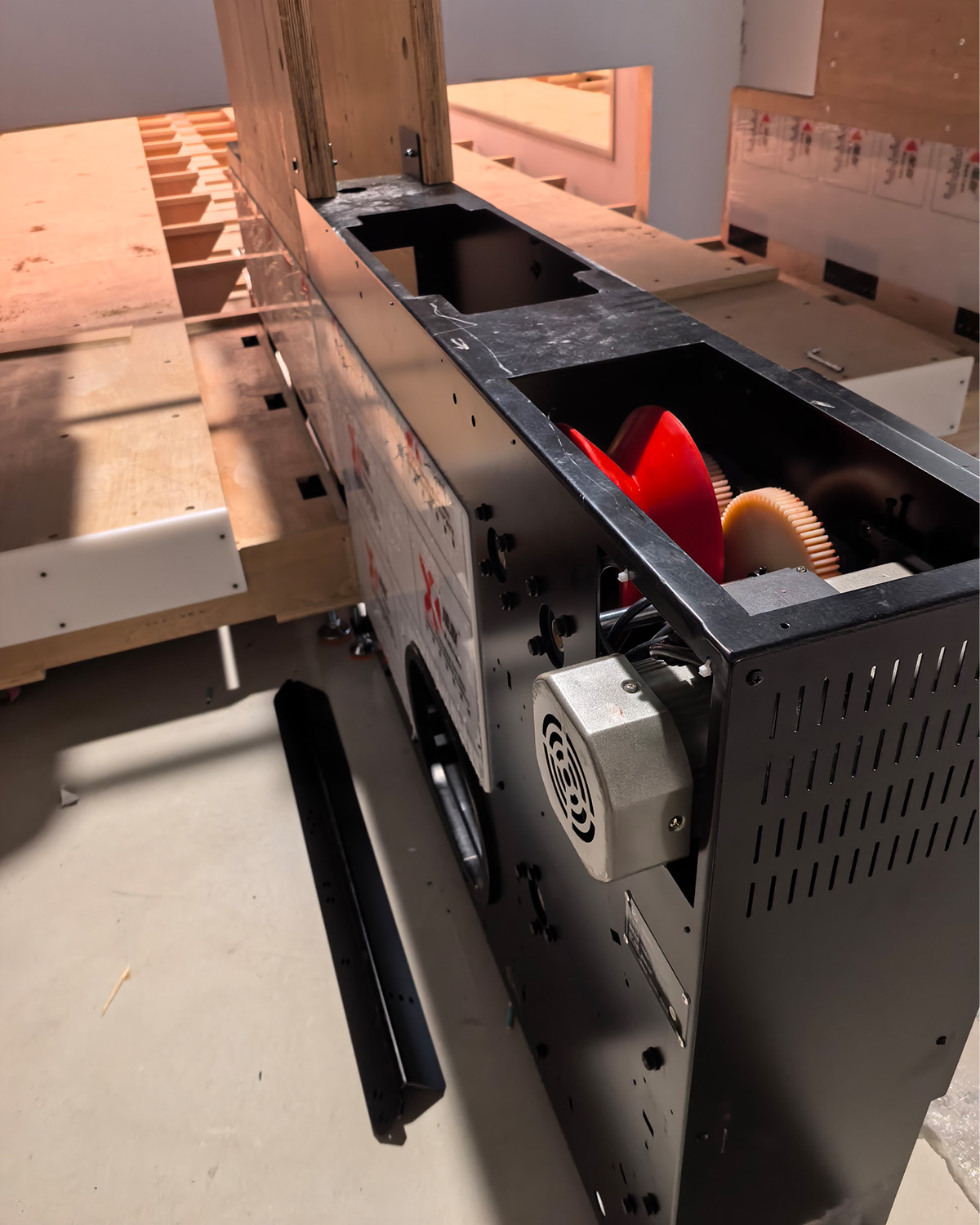

Ball Lift / Accelerator & Drive Mechanism
The ball lift and drive mechanism provides the mechanical power required to transfer bowling balls efficiently from the lane-end receiving area back to the player-side rack.
Motor System
Provides the mechanical power required for continuous bowling ball transfer.
Drive Components
Transmit motor power to the ball-moving mechanism for stable and efficient operation.
Guide Structure
Maintains the correct ball path during transfer and supports consistent return performance.
Control System
Coordinates the operation of the return mechanism where applicable for stable system performance.
Engineering Behind a Reliable Ball Return System
From return speed and ball movement to noise control, every factor influences the overall performance of a bowling ball return system.
What Affects Bowling Ball Return Speed?
Return speed is influenced by the interaction between ball weight, track design, drive performance, contact surfaces, and system maintenance.
- Bowling ball weight
- Return track design
- Drive system performance
- Ball contact surface
- System maintenance
Why Is My Bowling Ball Return Noisy?
Noise can come from ball impact, mechanical vibration, worn components, loose parts, poor alignment, or insufficient maintenance.
- Ball impact
- Track vibration
- Motor operation
- Worn rollers
- Loose components
- Poor alignment
Bowling Ball Return System Architecture
A coordinated system of mechanical components designed for continuous and reliable ball transportation.
Smooth Ball Transportation
Stable movement from the pin deck to the player area.
Low-Noise Operation
Optimized mechanical movement helps create a more comfortable bowling environment.
Compact Configuration
Return systems can be planned around available backend and player-area space.
Continuous Operation
Designed for repeated ball cycles in commercial bowling environments.

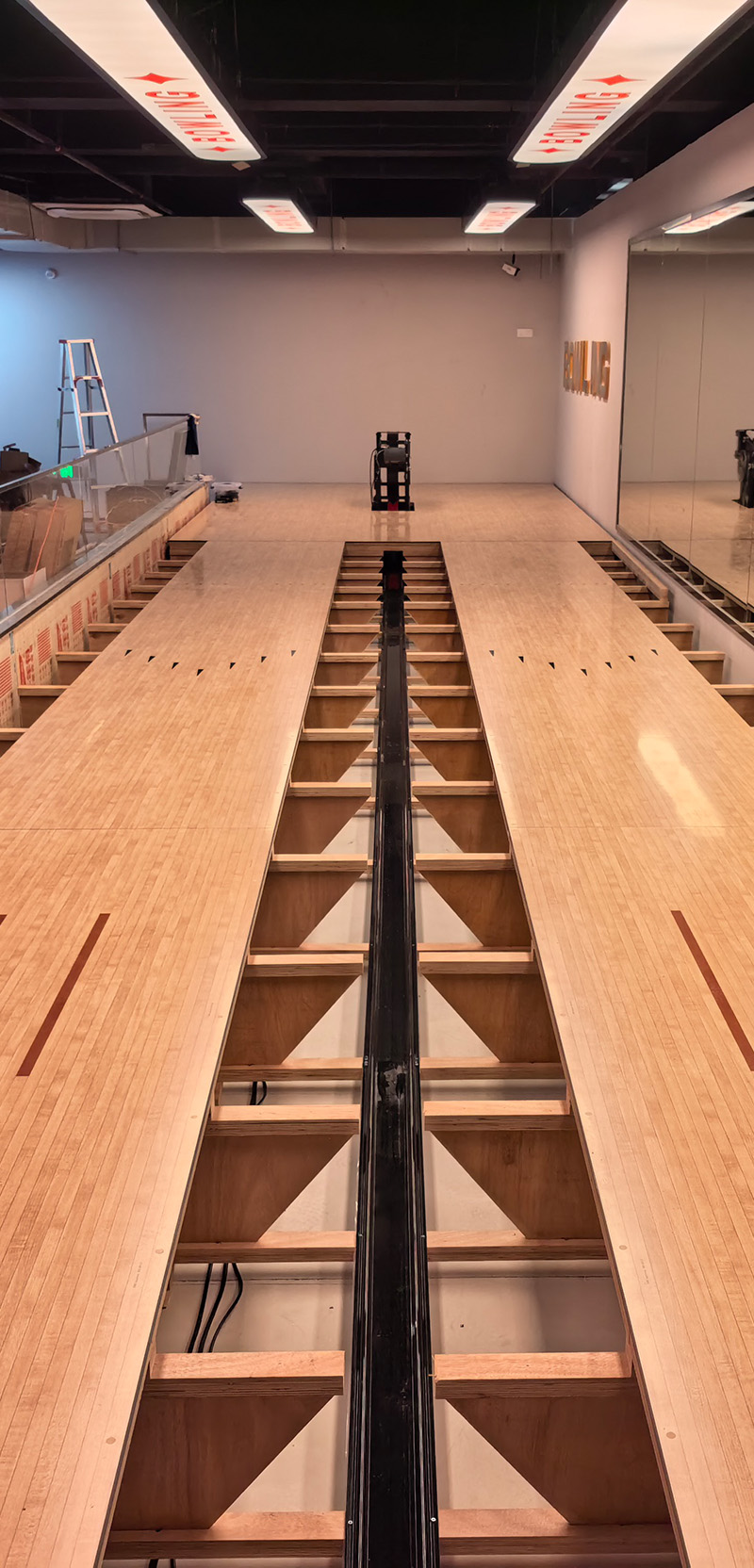

Above-Ground vs. Under-Lane Ball Return
Different ball return configurations affect installation, maintenance access, space planning, and overall venue design.
| Feature | Above-Ground Return | Under-Lane Return |
|---|---|---|
| Installation | Easier access and simpler installation | More integrated with the lane structure |
| Maintenance Access | Easier access for inspection and servicing | More limited access depending on lane construction |
| Visual Impact | More visible and can become part of the venue design | Less visible for a cleaner lane appearance |
| Space Planning | Flexible layout with easier equipment positioning | Requires dedicated under-lane planning |
| Upgrade Application | Excellent option for existing bowling center upgrades | Project dependent and may require structural modification |
| Modern Entertainment | Strong visual and design potential | Clean and integrated appearance |
The optimal configuration depends on lane structure, venue layout, maintenance requirements, and project objectives.

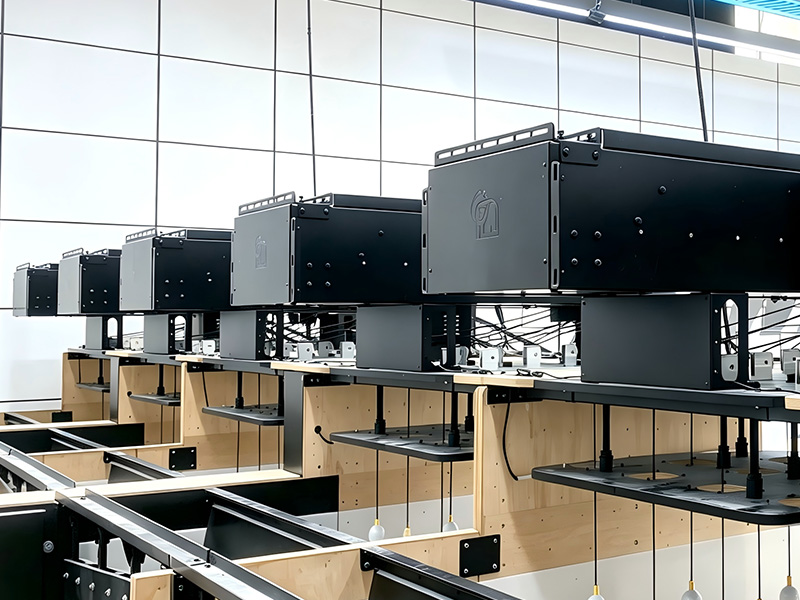

Integrated with String Pinsetter Technology
One Backend System. Better Space Utilization.
Handles the Pins
The String Pinsetter manages the complete pinsetting process behind the bowling lane. Its compact architecture helps simplify the backend equipment area while providing reliable pin handling and resetting performance.
- Pin detection
- Pin lifting
- Pin resetting
- Pin positioning
Handles the Ball
The Ball Return System receives, lifts, transports, and delivers bowling balls back to the player. Designed together with the backend equipment layout, the system supports efficient ball transportation and convenient maintenance access.
- Ball receiving
- Ball lifting
- Ball transportation
- Ball delivery
Designed as one coordinated backend solution
